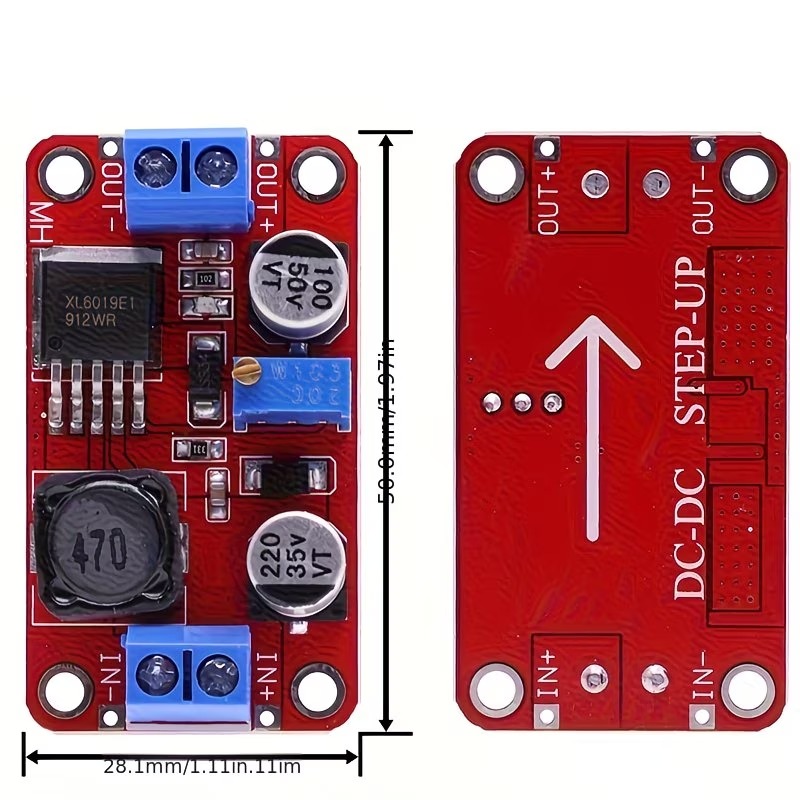

XL6019 5A DC-DC Adjustable Boost Converter module

Description

The XL6019 5A DC-DC Boost Converter Module is a high-efficiency step-up power supply designed to increase a lower DC input voltage to a higher adjustable output voltage. It is well suited for battery-powered systems, solar applications, and electronic projects where voltage boosting is required.

With a wide input voltage range, adjustable output, and built-in protection features, the XL6019 provides stable, reliable, and efficient power conversion for both professional and DIY applications.

Key Features

High-efficiency DC-DC boost (step-up) converter

Maximum output current up to 5A

Wide input voltage range

Adjustable output voltage via onboard potentiometer

High conversion efficiency (up to 94%)

Built-in overcurrent and thermal protection

Compact and durable module design

Specification

Input Voltage Range: 5V – 32V DC

Output Voltage Range: 1.3V – 35V DC (adjustable)

Maximum Output Current: 5A

Efficiency: Up to 94%

Switching Frequency: 180kHz

Output Ripple: < 50mV

Operating Temperature: –40°C to +85°C

Module Dimensions: 49mm × 23.4mm × 11.4mm

Application

Battery-powered electronics

Portable and handheld devices

Solar power and energy systems

Robotics and automation projects

DIY electronics and prototyping

General DC voltage boosting applications

Notes & Usage Tips

Output voltage should always be set before connecting sensitive loads.

Adequate cooling is recommended when operating near maximum current.

Input voltage must always be lower than the desired output voltage for proper boost operation.
