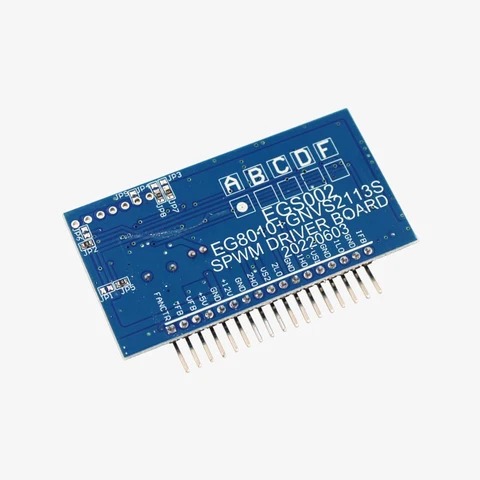

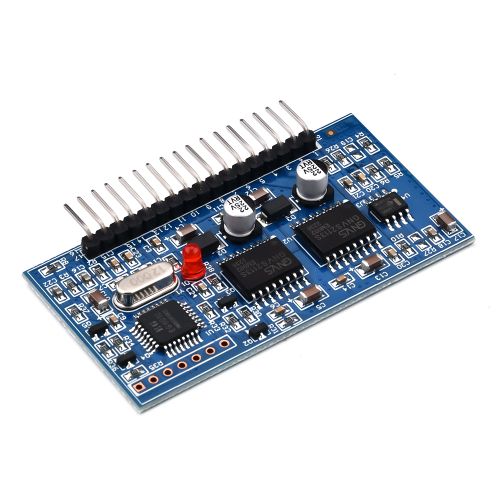

Pure sine wave inverter driver board EGS002 EG8010 driver module

Digital Sine Wave Generation: Equipped with the EG8010 chip for accurate, stable, and pure sine output.

High-Efficiency MOSFET Drive: Uses IR2110 for effective MOSFET switching and reduced losses.

Pure Sine Wave Output: Delivers clean, low-distortion AC output (<2% THD) suitable for sensitive electronics.

Adjustable Frequency: Supports both 50Hz and 60Hz operation for global compatibility.

Protection Features: Built-in overload, short-circuit, and thermal protection.

LED Indicators: Onboard LEDs provide real-time operational and fault status.

Modular Design: Simplifies integration into inverter systems and DIY power projects.

Input Voltage: 12V / 24V / 48V DC (depending on power stage model configuration)

Output Voltage: 220V AC (adjustable via external transformer feedback circuitry)

Output Frequency: Selectable 50Hz or 60Hz pure sine wave

Output Power: Up to 1kW (dependent on paired external power MOSFETs and transformer)

THD (Total Harmonic Distortion): <2% for a clean electrical signal

Efficiency: >90% operational efficiency under typical loads

MOSFET Driver: Dual high-voltage, high-speed IR2110 driver chips

Sine Wave Generator: Dedicated ASIC EG8010 microprocessor

Protection: Dedicated pins for voltage, current, and temperature feedback loop protections

PCB Dimensions: Approximately 100mm × 80mm compact footprint

Renewable Energy Systems: Perfect for solar and wind power inverter design and deployment.

Uninterruptible Power Supplies (UPS): Provides stable backup power for computers, servers, and sensitive medical equipment.

Power Management Systems: Suitable for custom industrial AC output regulation and conversion systems.

DIY and Educational Projects: Great for engineering labs, students, and hobbyists building custom inverter modules.

Portable and Backup Power Solutions: Ideal for off-grid cabins, campervans, and emergency power setups.
