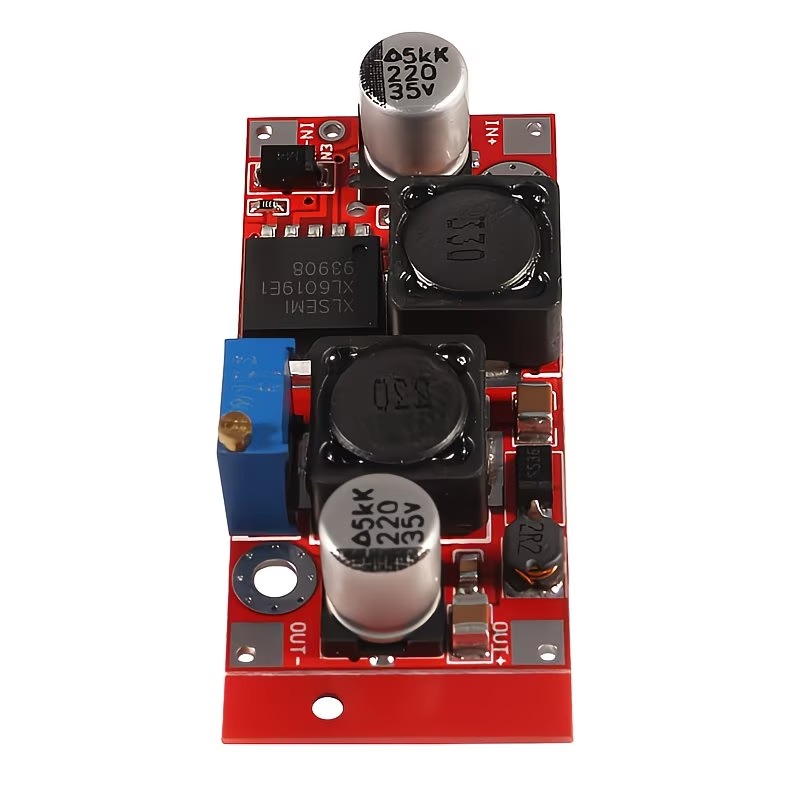

XL6009 DC-DC Adjustable Booster Power Supply Module

he XL6009 Boost DC-DC LM2577 Module is a versatile power supply module designed for boosting low voltage inputs to higher voltage outputs. It utilizes the XL6009 or LM2577 IC to efficiently convert and regulate voltage, making it ideal for powering devices from battery sources, solar panels, or other low voltage inputs. This module is commonly used in DIY electronics, portable devices, and power supply applications. Key Features:

• Boost Converter: Steps up voltage from lower to higher levels
• Wide Input Voltage Range: Typically 3V to 32V
• Adjustable Output Voltage: Typically 5V to 35V
• High Efficiency: Up to 90% efficiency for reduced power loss
• Integrated Circuit: XL6009 or LM2577 for reliable performance
• Current Capability: Can deliver up to 2A continuous output current
• Thermal Protection: Over-temperature protection for safe operation
• Compact Design: Small and lightweight for easy integration

Technical Specifications:

• Input Voltage Range: 3V to 32V DC
• Output Voltage Range: 5V to 35V DC (adjustable via potentiometer)
• Output Current: Up to 2A continuous (peak current capability varies)
• Efficiency: Up to 90%
• Switching Frequency: 400kHz (XL6009), 52kHz (LM2577)
• Operating Temperature Range: -40°C to +85°C
• Dimensions: Approximately 43mm x 21mm x 14mm
• Weight: Approximately 10g

Applications:

• Boosting battery voltage for higher voltage devices
• Powering electronic projects from low voltage sources
• Solar-powered systems and renewable energy projects
• Portable power supply units
• Adjustable voltage power supply for various electronics

Usage:

1. Connect the input voltage source (e.g., battery, solar panel) to the input terminals of the module.
2. Connect the output terminals to the device requiring the boosted voltage.
3. Adjust the output voltage using the onboard potentiometer to the desired level.
4. Ensure proper heat dissipation if operating at high currents or in high-temperature environments.

Caution:

• Verify input and output voltage ranges to avoid damage to the module and connected devices.
• Handle the module carefully to prevent short circuits or physical damage.
• Ensure proper ventilation and cooling for high-power applications.

Datasheet: For detailed technical specifications, refer to the XL6009 Boost DC-DC LM2577 Module Datasheet.
