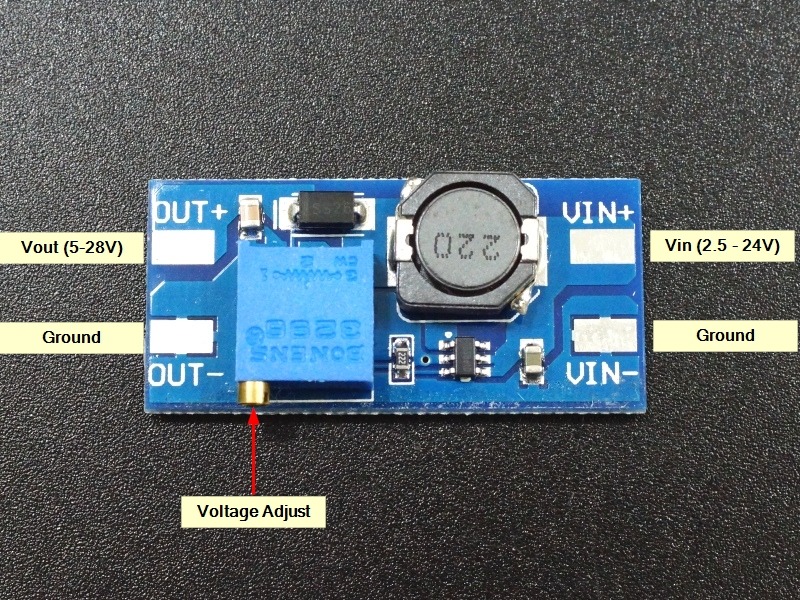

Mt3608 Adjustable Boost converter

The MT3608 DC-DC Boost Module is a versatile step-up (boost) converter that can increase a lower input voltage to a higher output voltage. Capable of delivering up to 2A of current, this module is ideal for applications that require stable and adjustable voltage conversion from a lower input voltage source. It is commonly used in power supply circuits, battery-powered devices, and various electronic projects.
Key Features:

• Converts lower input voltage to a higher output voltage
• Maximum output current of 2A
• Wide input voltage range
• Adjustable output voltage
• Compact design for easy integration
• High efficiency and low power dissipation

Technical Specifications:

• Input Voltage Range: 2V to 24V DC
• Output Voltage Range: 5V to 28V DC (adjustable)
• Maximum Output Current: 2A
• Efficiency: Up to 93% (typical)
• Switching Frequency: 1.2MHz (typical)
• Power Dissipation: Depends on load and input/output conditions
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 22mm x 17mm x 4.5mm (approximately)
• Mounting Type: Typically through-hole or surface mount

Applications:

• Battery-Powered Devices: Steps up battery voltage to a required level for operation.
• Power Supply Circuits: Provides regulated higher voltage for electronic circuits.
• DIY Projects: Useful in hobbyist projects where voltage boosting is needed.
• Portable Electronics: Powers devices that require a higher voltage from a low voltage source.
• LED Lighting: Used to drive LEDs or other components requiring higher voltage.

Datasheet: For detailed technical information, refer to the MT3608 Datasheet provided by Monolithic Power Systems.
