MB102 Solderless Breadboard 830

Description

The Breadboard MB102 is a high-quality, full-size breadboard ideal for prototyping and testing electronic circuits. It provides a large and flexible platform for constructing and experimenting with a wide range of circuits without the need for soldering. This breadboard is perfect for students, hobbyists, and professionals working on electronics projects. Key Features:
Large Prototyping Area: 830 tie-points, offering ample space for building circuits.
Power Rails: Dual power rails for convenient power distribution across the board.
High-Quality Construction: Durable ABS plastic housing with phosphor bronze contacts for reliable connections.
Self-Adhesive Back: Adhesive backing for securing the breadboard to a surface.

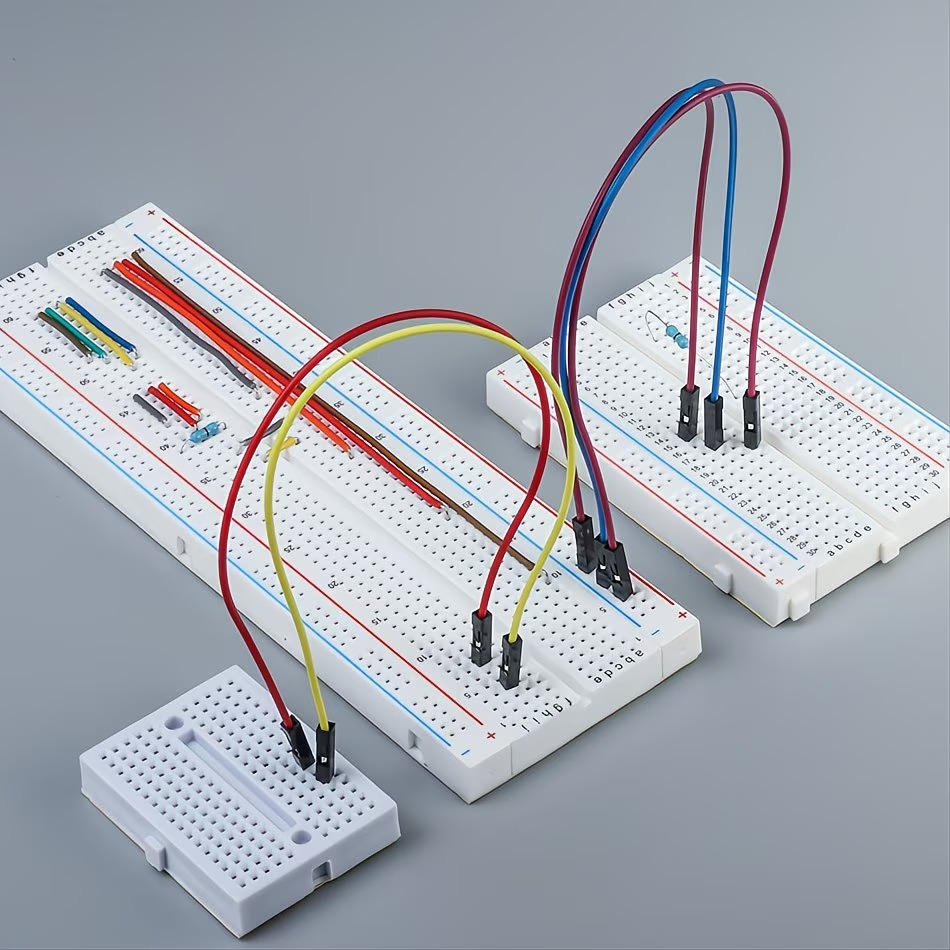

Interlocking Design: Allows multiple breadboards to be connected for larger projects.

Technical Specifications:
Tie-Points:
Total: 830 points
Terminal Strips: 630 points (63 rows of 10 points each)
Distribution Strips: 200 points (4 power rails of 50 points each)

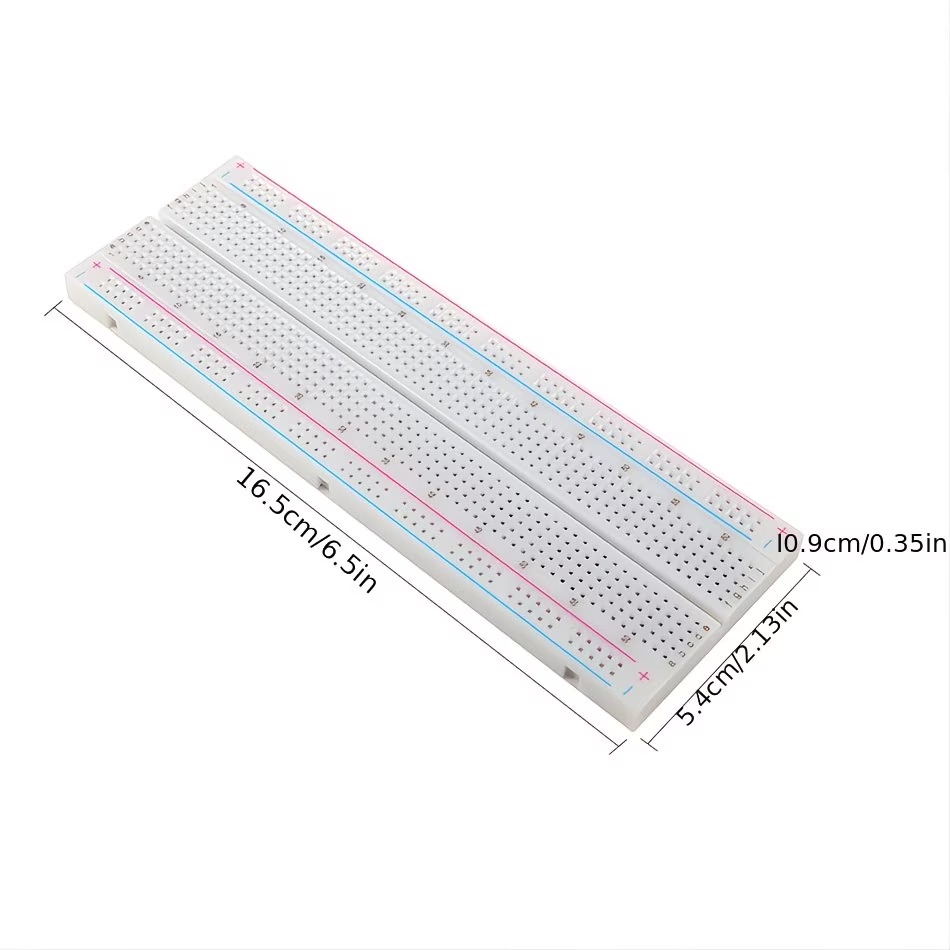

Dimensions:
Length: 165 mm
Width: 54 mm
Height: 9 mm
Material:
Housing: ABS plastic
Contacts: Phosphor bronze with nickel plating
Applications:
Prototyping electronic circuits
Testing and debugging components
Educational and instructional purposes
Hobbyist and DIY electronics projects

Usage:
Insert the components into the tie-points on the breadboard according to your circuit design.
Use jumper wires to make connections between components and power rails.
Connect a power supply to the power rails to provide power to your circuit.
Test and modify your circuit as needed, taking advantage of the breadboard's flexibility to easily change connections.
Caution:
Ensure all connections are secure to prevent short circuits.
Do not exceed the voltage and current ratings of the breadboard.
Handle the breadboard with care to avoid bending or damaging the contacts.
