HIgh Power MOS 5v-36v Transistor Switch Driver Module
Boards
₦ 4,000
in stockNo reviews yet
Quantity:
1
Description

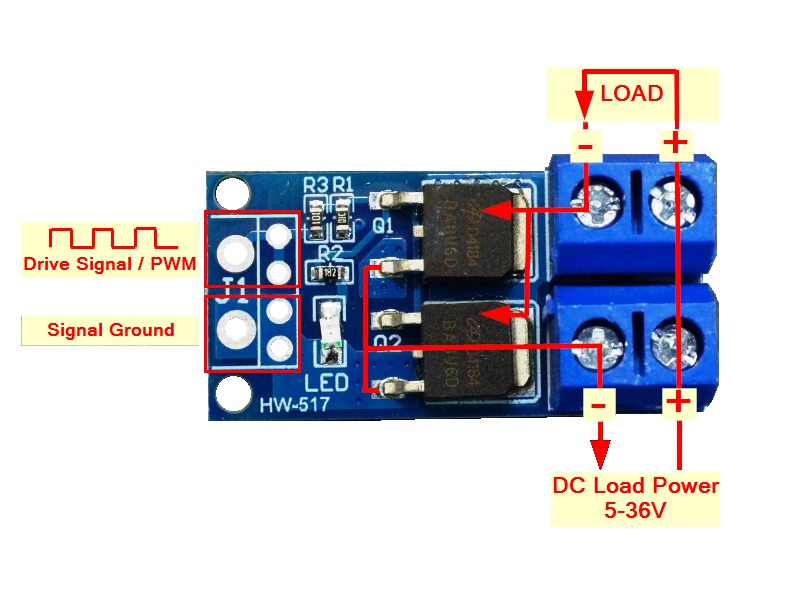

Description: The High Power MOSFET Trigger Switch Driver Module is designed for high-current applications where precise electronic switching and control are essential. It uses imported dual MOSFETs in parallel to provide a low internal resistance, enabling the module to handle higher currents and power efficiently. The module is suitable for controlling high-power devices and supports PWM input for versatile control applications. Key Features:
- Dual MOSFETs: Imported dual MOSFETs in parallel for lower resistance, higher current handling, and greater power capacity.
- High Current Handling: Capable of handling up to 15A continuous current and 400W power at room temperature, with a maximum current of 30A under auxiliary cooling.
- Wide Voltage Range: Operates with input voltages from DC 5V to 36V.
- PWM Input Support: Accepts PWM signals for controlling motor speed, lamp brightness, and other devices.
- Versatile Control: Can control various high-power devices, including electric motors, light bulbs, LED light strips, DC motors, micro pumps, and solenoid valves.
- Temperature Range: Operates within a temperature range of -40°C to 85°C.
Technical Specifications:
- Operating Voltage: DC 5V - 36V
- Trigger Source: Digital high-low (DC 3.3V - 20V); compatible with microcontroller IO ports, PLC interfaces, and DC power. Supports PWM signal with a frequency range of 0 - 20 kHz.
- Output Capacity: DC 5V - 36V; continuous current of 15A, power of 400W. Maximum current up to 30A with auxiliary cooling.
- Dimensions: 34mm x 17mm x 12mm
Applications:
- Power Equipment Control: Ideal for controlling high-power devices such as motors and light bulbs.
- PWM Control: Suitable for applications requiring PWM input, such as LED light strips, DC motors, micro pumps, and solenoid valves.
- Speed and Brightness Control: Enables control of motor speed and lamp brightness.
Datasheet: For detailed technical information and specifications, please refer to the D4184 High Power MOSFET module datasheet Datasheet.
