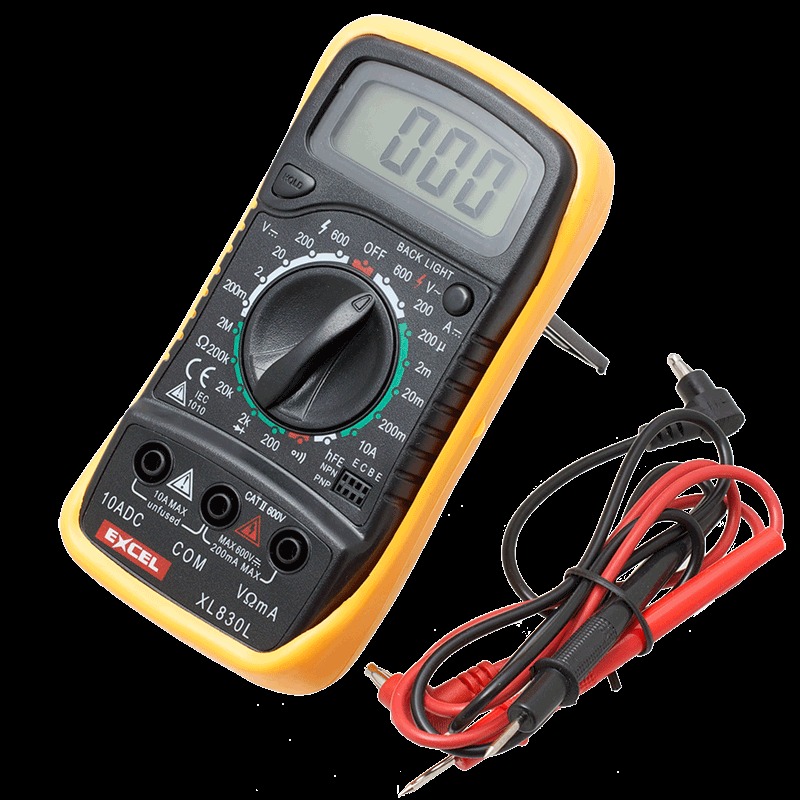

Original XL830L Digital Multimeter
Tools
₦ 8,800
in stockNo reviews yet
Quantity:
1
Description
he Digital Multimeter XL830L is a versatile, handheld device used for measuring various electrical parameters, including voltage, current, and resistance. It is suitable for both professional electricians and DIY enthusiasts. The XL830L features a clear LCD display with backlight, auto power-off function, and a durable, compact design, making it an essential tool for electrical testing and troubleshooting. Key Features:
- Measures AC/DC voltage, DC current, and resistance
- Continuity and diode test functions
- Large, backlit LCD display for clear readings
- Auto power-off to conserve battery life
- Overload protection on all ranges
- Durable and compact design with a protective rubber sleeve
- Data hold function to freeze readings on display
Technical Specifications:
- DC Voltage Range: 200mV to 600V
- AC Voltage Range: 200V to 600V
- DC Current Range: 200µA to 10A
- Resistance Range: 200Ω to 2MΩ
- Display: 3 1/2 digits, 1999 count LCD with backlight
- Diode Test: Yes
- Continuity Test: Yes (with buzzer)
- Power Supply: 9V battery (6F22)
- Dimensions: Approx. 138mm x 69mm x 31mm
- Weight: Approx. 170g (including battery)
Applications:
- Electrical troubleshooting and repair
- Electronics testing and development
- Automotive electrical diagnostics
- Home appliance repair
- Educational purposes
Usage:
- Insert the 9V battery into the multimeter.
- Connect the test probes to the appropriate input jacks.
- Select the desired measurement function and range using the rotary switch.
- Apply the test probes to the circuit or component under test.
- Read the measured value on the LCD display.
Caution:
- Do not apply voltage or current exceeding the specified limits to avoid damage.
- Use appropriate personal protective equipment (PPE) when working with high voltage.
- Ensure the multimeter is set to the correct measurement function and range before use.
- Follow the manufacturer’s guidelines for safe operation.
Datasheet: For detailed technical specifications, refer to the XL830L Datasheet
