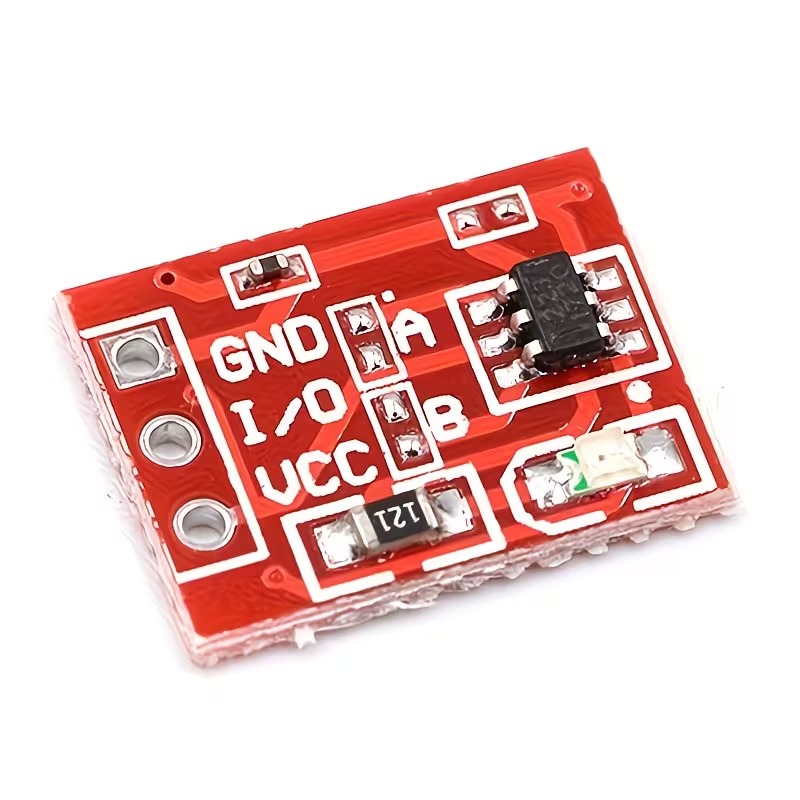

Touch Sensor

A touch sensor module is an electronic component used to detect touch or proximity of objects. It can be used to implement touch-sensitive controls in various applications, such as user interfaces, touchscreens, and other interactive systems. The module typically consists of a touch-sensitive element and supporting circuitry to process the touch signals.

Key Features:

• Detects touch or proximity with high sensitivity
• Provides digital or analog output depending on the module
• Easy integration with microcontrollers and other digital systems
• Often includes built-in debouncing and signal conditioning

Technical Specifications:

• Detection Type: Capacitive or resistive (depending on the module)
• Output Type:
  • Digital (High/Low)
  • Analog (varies with touch intensity)
• Operating Voltage: Typically 3.3V to 5V
• Current Consumption: Low power consumption, varies by module
• Response Time: Fast response to touch events (typically milliseconds)
• Package Type: Usually a module with pins or connectors for easy integration
• Interface: Digital pin for touch detection or analog output

Applications:

• Touch-sensitive user interfaces in electronic devices
• Touchscreens for interactive displays
• Capacitive touch panels in consumer electronics
• Proximity detection in automated systems

Usage:

1. Connect Power: Connect the module's power pins to the appropriate voltage supply (3.3V or 5V).
2. Connect Output: Connect the output pin to a digital input on a microcontroller or an analog-to-digital converter (ADC) if the module provides an analog output.
3. Calibration (if needed): Some modules may require calibration for accurate touch detection.
4. Integration: Use the output signal in your application to trigger actions or feedback based on touch events.

Caution:

• Ensure correct power supply and connections to avoid damage to the module.
• Handle the module with care to avoid static discharge, which can affect its performance.
• Follow the manufacturer's guidelines for proper use and calibration.

Datasheet: For detailed technical specifications, refer to the specific datasheet provided by the touch sensor module manufacturer.
