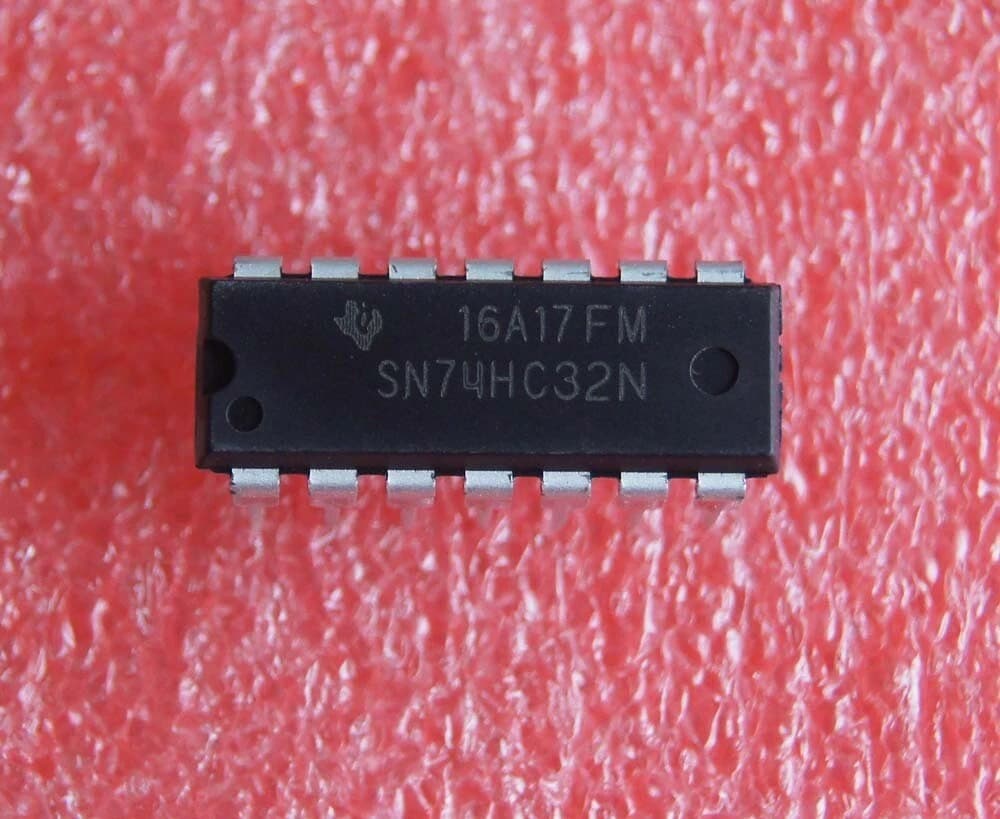

SN74HC32N

Description: The SN74HC32N integrates four independent 2-input OR gates in a single package. Each OR gate accepts two binary inputs and outputs a high signal (logic 1) if at least one of its inputs is high. It operates at high speed and is compatible with TTL (Transistor-Transistor Logic) inputs, making it versatile for use in a wide range of digital logic applications. Key Features:

• Quad 2-input OR gates
• High-speed CMOS technology
• Low power consumption
• Wide operating voltage range: 2V to 6V
• Typical propagation delay: 10 ns at VCC = 5V, CL = 15 pF
• High output drive capability: ±5.2 mA at VCC = 5V
• Balanced propagation delays
• Direct compatibility with TTL input levels

Technical Specifications:

• Package Type: 14-pin DIP (Dual In-line Package)
• Supply Voltage (VCC): 2V to 6V
• Input Voltage (VIN): 0V to VCC
• Output Voltage (VOUT): 0V to VCC
• Input High Voltage (VIH): 3.5V (min) at VCC = 4.5V
• Input Low Voltage (VIL): 1.5V (max) at VCC = 4.5V
• Output Current (IO): ±5.2 mA (max)
• Quiescent Supply Current (ICC): 1 µA (max)
• Operating Temperature Range: -40°C to +85°C

Applications:

• Digital logic circuits
• Microcontroller interfacing
• Arithmetic and logic operations
• Signal gating and switching
• Address decoding
