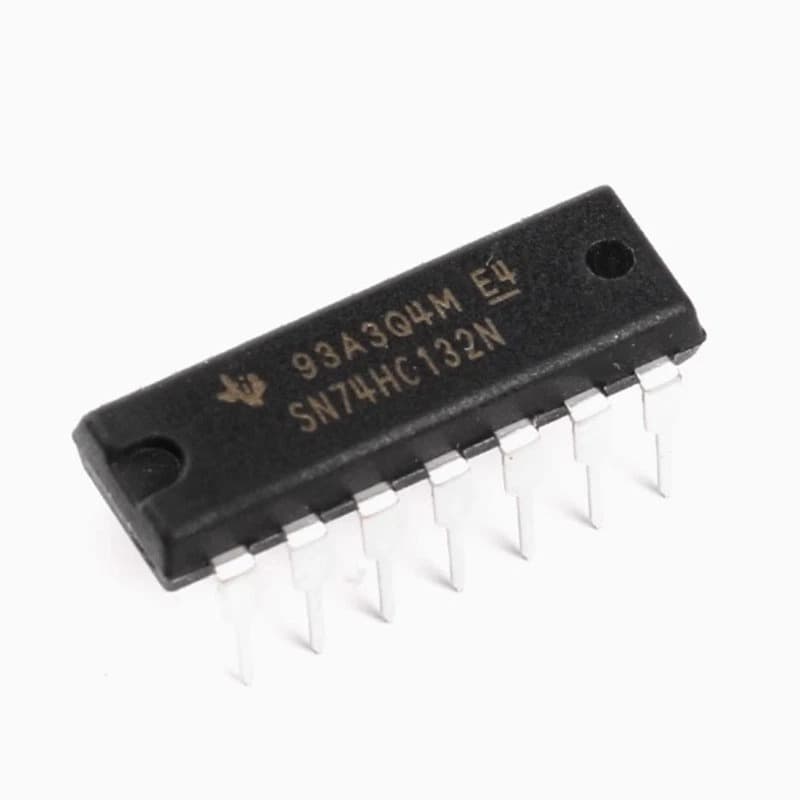

SN74HC132N

The SN74HC132N (74HC132) is a high-speed CMOS quad 2-input NAND Schmitt trigger from Texas Instruments. It combines the performance and advantages of the NAND gate with the noise immunity and fast response of the Schmitt trigger. This combination makes it ideal for use in various digital logic circuits, especially where signal conditioning or noise immunity is required. The device operates over a wide voltage range and is suitable for various applications in digital systems. Key Features:

• Four 2-input NAND Schmitt trigger gates
• High noise immunity
• Low power consumption
• Wide operating voltage range: 2V to 6V
• Inputs accept voltages up to 6V
• Improved switching characteristics over standard NAND gates
• Typical tpd (propagation delay) of 16 ns at Vcc = 5V
• Compatible with standard TTL logic levels

Technical Specifications:

• Supply Voltage (Vcc): 2V to 6V
• Input Voltage Range: 0V to 6V
• High-Level Output Voltage (VOH): Vcc - 0.1V (min at Vcc = 4.5V)
• Low-Level Output Voltage (VOL): 0.1V (max at Vcc = 4.5V)
• Input Current (Iin): ±1 μA (max)
• Quiescent Supply Current (Icc): 1 μA (max)
• Propagation Delay Time (tpd): 16 ns (typical at Vcc = 5V)
• Operating Temperature Range: -40°C to +85°C
• Package: 14-pin DIP

Applications:

• Signal conditioning
• Noise filtering
• Digital circuits requiring fast response and noise immunity
• Clock pulse shaping
• Level shifting
