RC522 RFID Module Kit

The RC522 RFID Module Kit is a complete solution for adding RFID functionality to your projects. The module operates at 13.56MHz and uses the MFRC522 IC for communication with RFID cards and tags. It is designed for easy integration with microcontroller platforms like Arduino, making it ideal for access control, attendance systems, and other identification applications. Key Features:

• Operates at 13.56MHz frequency
• Compatible with ISO/IEC 14443 Type A cards
• Supports MIFARE1 S50, MIFARE1 S70, MIFARE Ultralight, MIFARE Pro, and MIFARE DESFire cards
• SPI, I2C, and UART communication interfaces
• Low power consumption
• High data transfer rate (up to 10 Mbit/s)
• Compact design and easy to use
• Comes with RFID cards and key fobs

Technical Specifications:

• Operating Frequency: 13.56MHz
• IC Chip: MFRC522
• Communication Interfaces: SPI, I2C, UART
• Power Supply Voltage: 3.3V
• Current Consumption: 13-26mA
• Read Range: Up to 5 cm (depending on the antenna size and tag type)
• Dimensions: 40mm x 60mm x 5mm

Kit Components:

• RC522 RFID Module
• 1 x MIFARE 1K S50 RFID Card
• 1 x RFID Key Fob
• Header pins for connection
• Jumper wires for easy interfacing

Applications:

• Access control systems
• Time and attendance tracking
• Contactless payment systems
• Inventory management
• Asset tracking
• DIY electronics projects

Usage:

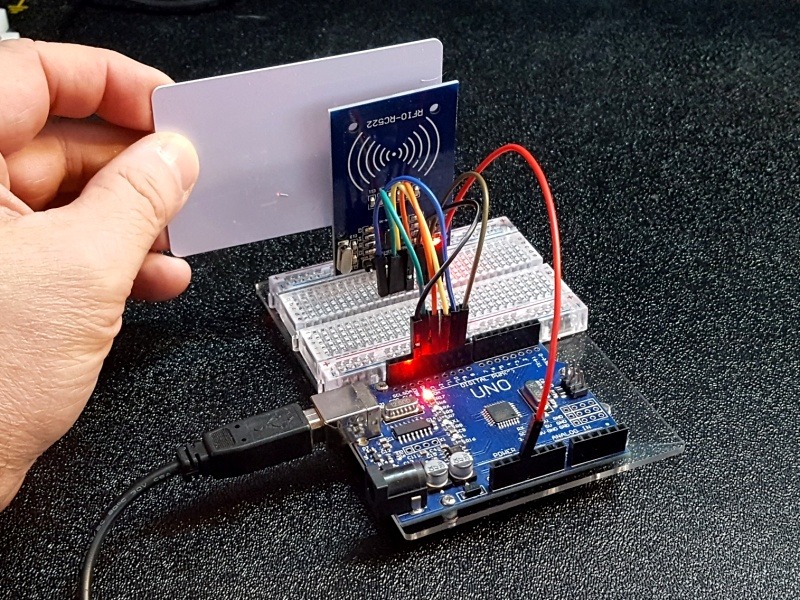

1. Wiring:
   • Connect the RC522 RFID module to your microcontroller platform using SPI, I2C, or UART interfaces. For Arduino, the typical SPI connections are:
     • VCC to 3.3V
     • GND to GND
     • RST to Pin 9
     • IRQ (not used)
     • MISO to Pin 12
     • MOSI to Pin 11
     • SCK to Pin 13
     • SDA (SS) to Pin 10
2. Programming:
   • Install the necessary libraries (e.g., MFRC522 library for Arduino).
   • Use example code to initialize the module and read RFID tags or cards.
3. Testing:
4.
   • Present an RFID card or key fob to the module and observe the UID output on the serial monitor.

Caution:

• Ensure proper handling to avoid damage from electrostatic discharge (ESD).
• Verify power supply requirements to prevent damage to the module.
• Keep the module away from strong electromagnetic fields to ensure reliable operation.

Datasheet: For detailed technical specifications, refer to the MFRC522 Datasheet.
