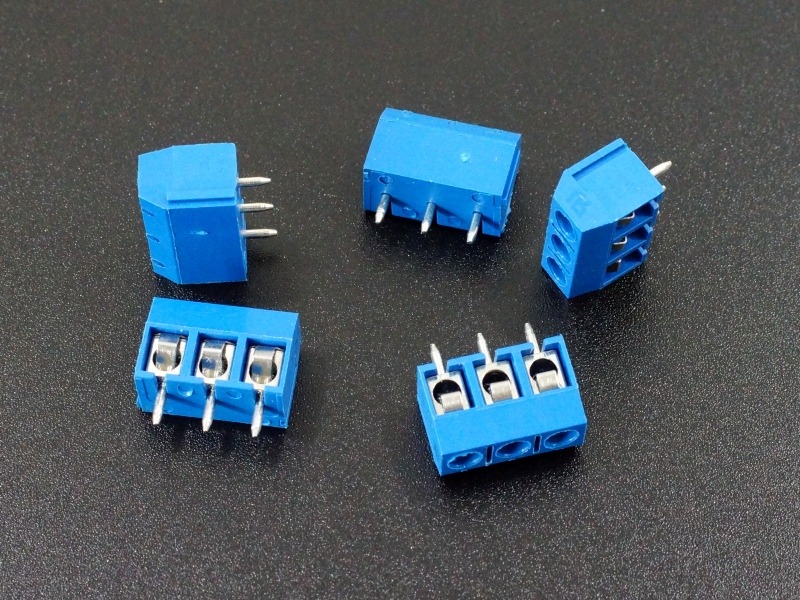

Pcb Terminal Block 3 pin

The 3-Way PCB Terminal is designed for efficient and secure electrical connections on printed circuit boards (PCBs). This terminal block allows for the easy connection of three wires to a PCB, ensuring a stable and reliable electrical interface. Key Features:

• Configuration: 3-way terminal block for connecting multiple wires.
• Material: High-quality plastic housing with durable metal contacts.
• Mounting: PCB mountable for secure and stable connections.
• Connection Type: Screw-type connections for easy wire insertion and secure fastening.
• Current Rating: Suitable for a range of current ratings, typically up to 15A.
• Voltage Rating: Suitable for a range of voltage ratings, typically up to 300V.
• Pitch: Standard pitch (distance between terminals), commonly 5.08mm.

Technical Specifications:

• Number of Ways: 3
• Current Rating: Up to 15A
• Voltage Rating: Up to 300V
• Pitch: 5.08mm (or other standard pitches as specified)
• Contact Material: Nickel-plated brass or other high-conductivity metal
• Housing Material: Flame-retardant thermoplastic
• Screw Type: M3 or similar size for secure wire connection
• Wire Size: Suitable for a range of wire sizes, commonly 22-14 AWG

Applications:

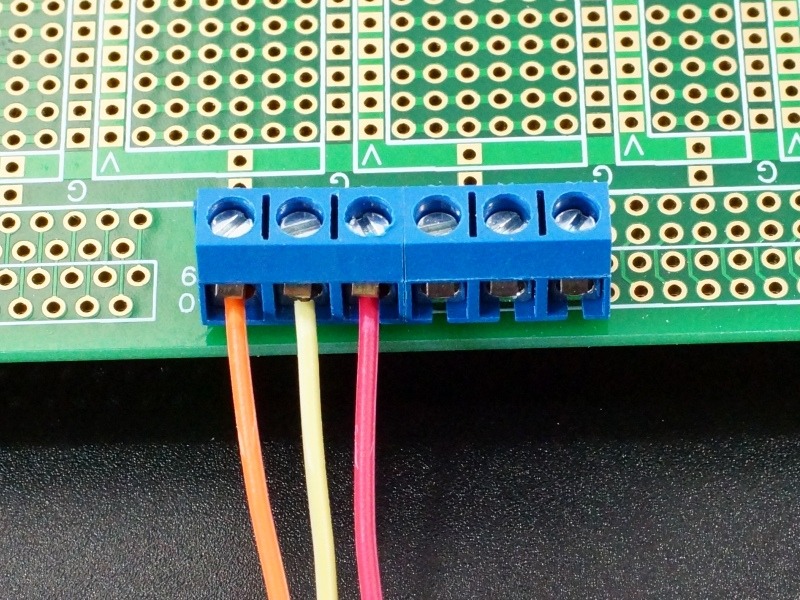

• PCB Connections: Connecting multiple wires to PCBs in various electronic projects and devices.
• Power Distribution: Distributing power to different components on a PCB.
• Signal Transmission: Transmitting signals between different parts of a circuit.
• Industrial Automation: Used in industrial control systems and automation projects.
• Prototyping: Ideal for prototyping and testing circuit designs.

Usage:

1. Prepare Wires: Strip the ends of the wires to expose the conductors.
2. Insert Wires: Insert the stripped wire ends into the terminal block openings.
3. Tighten Screws: Use a screwdriver to tighten the screws, securing the wires in place.
4. Mount on PCB: Solder the terminal block onto the PCB at the designated mounting holes.

Caution:

• Ensure proper wire stripping to avoid short circuits.
• Tighten screws securely to prevent loose connections.
• Use within the specified current and voltage ratings to avoid overheating and damage.
