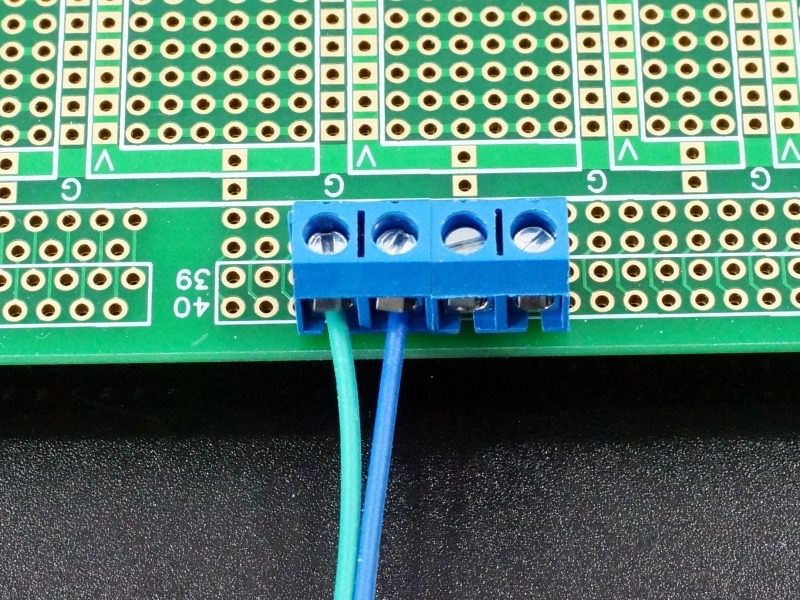

Pcb Terminal Block 2 pin

The 2-Way PCB Screw Terminal is a compact and reliable connector used to securely attach and disconnect wires on a printed circuit board (PCB). It features two screw terminals for connecting two wires, providing a stable and durable connection for various electronic and electrical applications. This type of terminal is commonly used in power distribution, signal connections, and modular systems. Key Features:

• Two screw terminals for easy wire connection
• Suitable for use with PCB for secure mounting
• Provides a reliable and durable electrical connection
• Simple and convenient for quick wire insertion and removal
• Supports various wire gauges and types
• Compact design for space-saving on PCB

Technical Specifications:

• Number of Positions: 2
• Terminal Type: Screw
• Mounting Type: PCB (Printed Circuit Board)
• Wire Gauge Range: Typically 22-12 AWG (varies by manufacturer)
• Insulation Material: Polyamide (PA) or other suitable insulating materials
• Terminal Material: Brass or copper with tin plating
• Operating Voltage: Typically up to 300V (depends on the specific terminal rating)
• Operating Temperature Range: -40°C to +105°C
• Package Type: Typically available in strips or individual connectors

Applications:

• Power supply connections
• Signal wiring and distribution
• Modular and expandable systems
• Industrial equipment
• Consumer electronics

Usage:

1. Mount the 2-Way PCB Screw Terminal onto the PCB by inserting it into the designated holes.
2. Secure the terminal to the PCB by soldering the pins or using mechanical locking methods (if applicable).
3. Strip the insulation from the wires to the appropriate length.
4. Insert the stripped wires into the terminal and tighten the screws to secure the wires in place.

Caution:

• Ensure the terminal is rated for the voltage and current levels used in your application.
• Avoid over-tightening the screws to prevent damage to the terminal or wires.
• Verify proper wire insulation stripping to ensure reliable connections.

Datasheet: For detailed technical specifications, refer to the 2-Way PCB Screw Terminal Datasheet.
