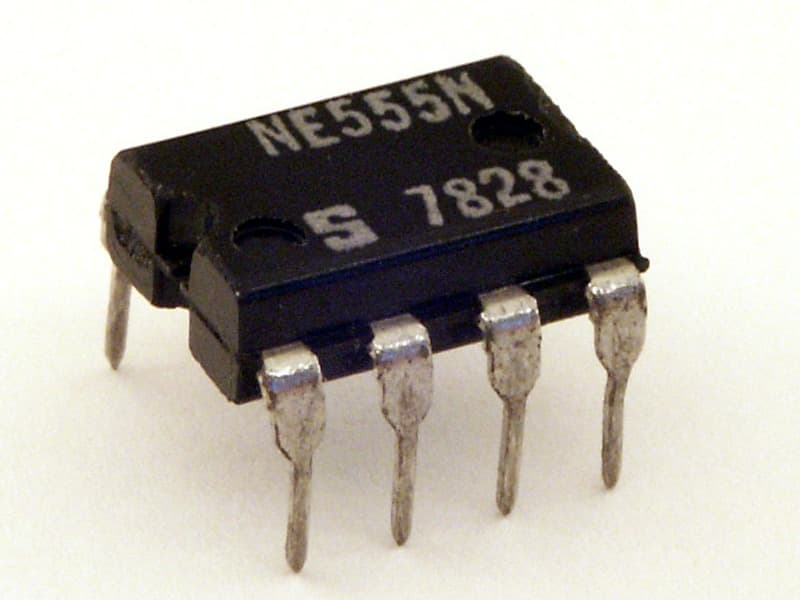

NE555 Timer

The NE555 timer is a highly stable integrated circuit that can produce accurate time delays or oscillation. It is widely used in timing, pulse generation, and oscillator applications. The NE555 can operate in monostable, astable, and bistable modes, making it a versatile component for various electronic projects and circuits. Key Features:

• High precision timing
• Operates in monostable, astable, and bistable modes
• Adjustable duty cycle
• Output is compatible with TTL
• Can source or sink up to 200mA
• High-temperature stability
• Low turn-off time
• Reliable and cost-effective

Technical Specifications:

• Operating Voltage: 4.5V to 16V
• Timing Interval: Microseconds to hours
• Output Current: 200mA (maximum)
• Operating Temperature Range: 0°C to +70°C
• Timing Accuracy: ±1% (typical)
• Duty Cycle: Adjustable
• Package Type: DIP-8, SOIC-8
• Power Dissipation: 600mW (DIP-8), 400mW (SOIC-8)

Applications:

• Timer circuits
• Pulse generation
• Sequential timing
• Time delay generation
• Frequency division
• Square wave oscillators
• LED and lamp flashers
• Tone generation
• Logic clocks

Usage:

1. Monostable Mode:
   • In this mode, the NE555 operates as a one-shot timer. When triggered by an external pulse, it generates a single output pulse of a specified duration.
   • Connect the external components (resistors and capacitors) to set the desired time delay.
2. Astable Mode:
   • In this mode, the NE555 operates as an oscillator, generating a continuous square wave output.
   • Connect the external components to set the frequency and duty cycle of the oscillation.
3. Bistable Mode:
   • In this mode, the NE555 operates as a flip-flop, with two stable states. The output changes state when triggered by external pulses.
   • Configure the external components to use the NE555 as a bistable multivibrator.

Caution:

• Ensure the power supply voltage is within the specified range to avoid damaging the IC.
• Verify the correct connection of external components to achieve the desired timing and oscillation characteristics.
• Handle the IC carefully to avoid electrostatic discharge (ESD) damage.
