LCD I2C Interface Adapter

The I2C LCD Interface is an adapter module designed to simplify the connection and control of LCD displays using the I2C (Inter-Integrated Circuit) communication protocol. This interface module allows for easy integration of LCD screens into projects by reducing the number of required GPIO pins on microcontrollers and simplifying the wiring process. It is commonly used with 16x2 or 20x4 character LCDs to provide a user-friendly display solution for various electronics and embedded systems. Key Features:

• Interface: I2C communication for simplified wiring

• Compatible LCDs: Typically used with 16x2 or 20x4 character LCDs

• Addressable I2C Bus: Allows multiple devices to be connected on the same I2C bus

• Adjustable Contrast: Includes a potentiometer for adjusting the display contrast

• Easy Integration: Reduces the number of connections required (only two I2C wires: SDA and SCL)

• Power Supply: Powered through the I2C bus or external power source

Technical Specifications:

• Communication Protocol: I2C (Inter-Integrated Circuit)

• LCD Compatibility: 16x2 and 20x4 character LCDs

• I2C Address: Typically configurable (e.g., 0x27 or 0x3F)

• Operating Voltage: 5V or 3.3V (depending on the module and LCD)

• Contrast Adjustment: Potentiometer for contrast control

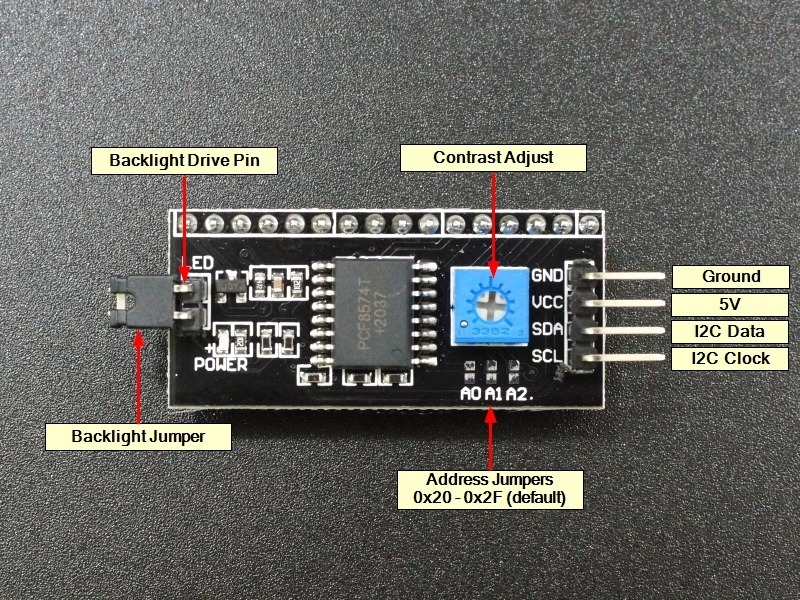

• Pin Connections: SDA (Serial Data), SCL (Serial Clock), VCC, GND

• Dimensions: Varies by module, typically compact and designed to fit behind the LCD

Applications:

• Embedded systems and microcontroller projects

• Display solutions for DIY electronics

• User interfaces for various electronic devices

• Home automation and monitoring systems

• Educational projects and prototyping

Usage:

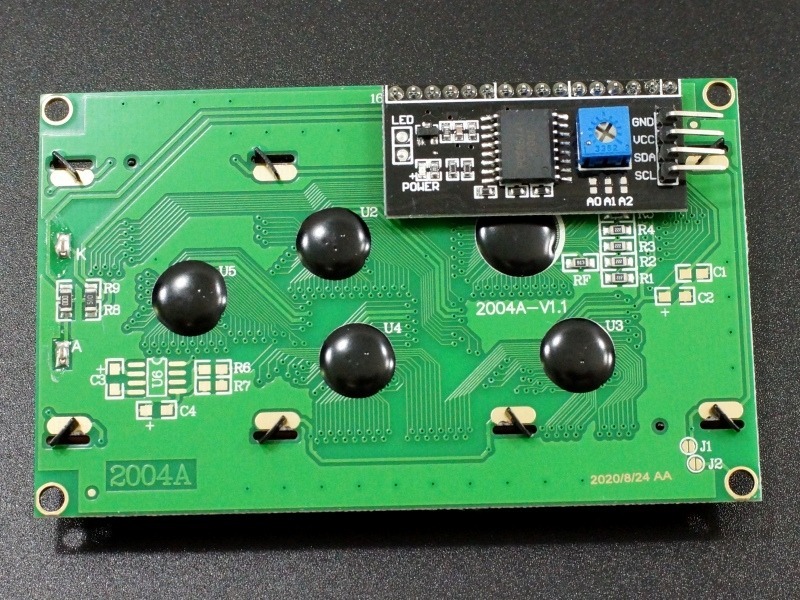

1. Connect the I2C LCD interface module to the LCD screen, ensuring proper alignment of pins.

2. Connect the I2C module to the microcontroller or development board using the SDA and SCL pins.

3. Power the module and LCD display using the appropriate voltage supply.

4. Use a library or driver compatible with your microcontroller to initialize and control the LCD via the I2C interface.

5. Adjust the contrast using the onboard potentiometer if needed.

Caution:

• Ensure proper connection of the I2C wires to avoid communication issues.

• Verify the operating voltage of the module and LCD to prevent damage.

• Follow the manufacturer's guidelines for configuring the I2C address if needed.
