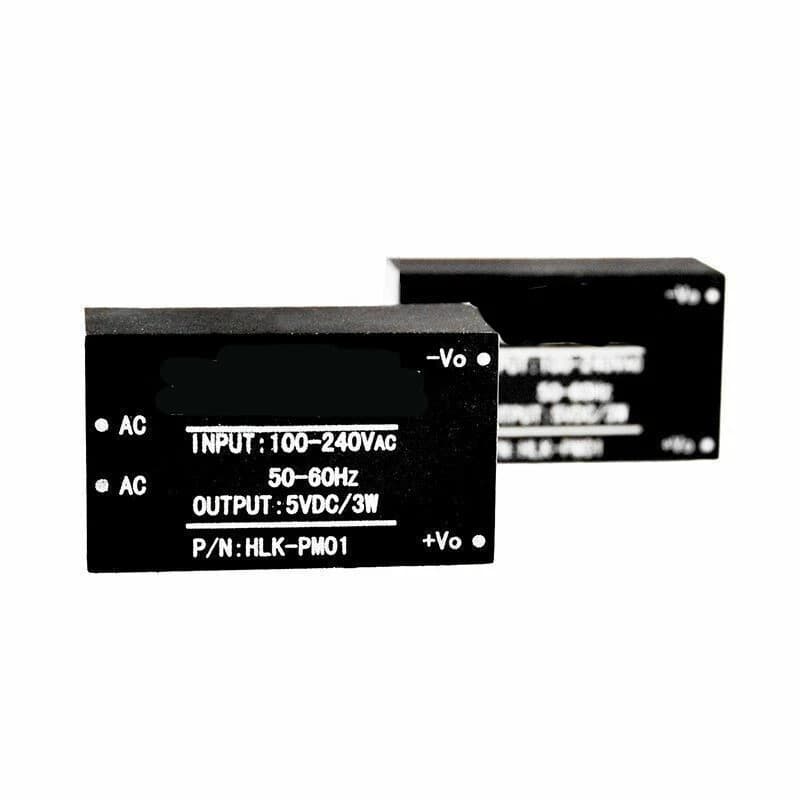

HLK 5v Power Module

The AC-DC Isolated Power Module 220VAC-5VDC is a reliable and efficient power conversion device designed to provide a stable 5V DC output from a standard 220V AC mains supply. Featuring electrical isolation between input and output, it ensures enhanced safety and protection for various applications. This module is commonly used in industrial automation, instrumentation, home appliances, and other electronics requiring a dependable and isolated power source. Key Features:

• Input Voltage: 220V AC (nominal)
• Output Voltage: 5V DC
• Isolation: Electrical isolation between input and output for improved safety
• Efficiency: High efficiency for energy conservation
• Protection: Overload, overvoltage, and short-circuit protection
• Compact Size: Small form factor for easy integration
• Mounting: PCB mountable or screw terminals for flexible installation

Technical Specifications:

• Dimensions: Varies by model (e.g., 45 mm x 20 mm x 15 mm)
• Weight: Approximately 25 g
• Input Voltage Range: 85V to 265V AC
• Output Current: Up to 1A (5W)
• Ripple and Noise: ≤ 100mV
• Isolation Voltage: 3000V AC
• Operating Temperature: -25°C to +70°C
• Humidity: 10% to 90% RH (non-condensing)
• Connector Types: PCB pins or screw terminals

Applications:

• Industrial Automation: Provides isolated power for control systems and machinery.
• Instrumentation: Powers sensitive measurement devices with stable and isolated output.
• Home Appliances: Suitable for powering low-voltage electronics in household devices.
• Embedded Systems: Supplies isolated power to embedded circuits and microcontrollers.
• General Electronics: Ideal for projects and devices requiring a reliable 5V DC supply from an AC source.
