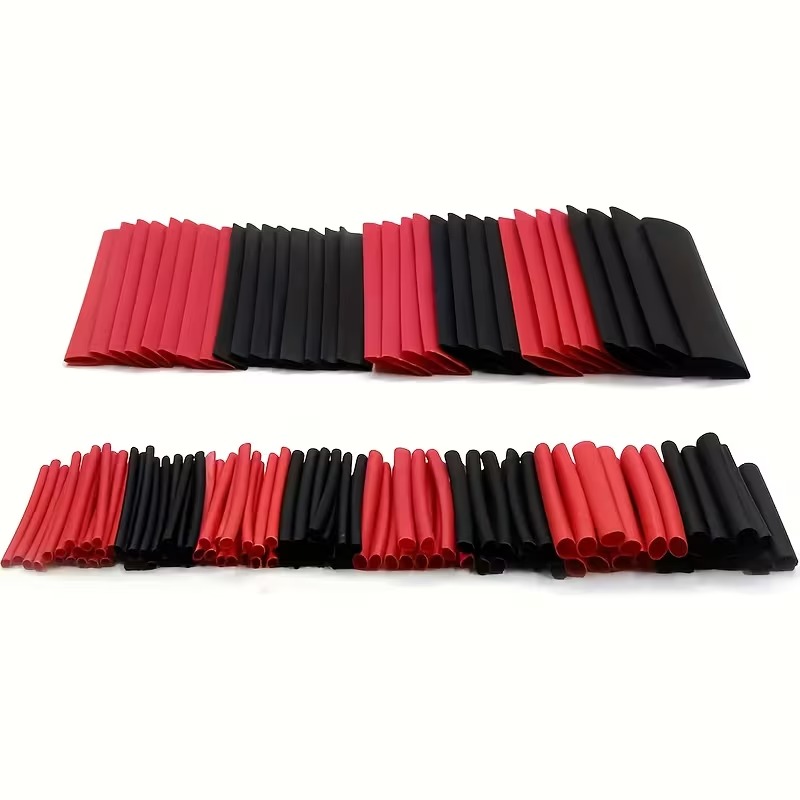

Heat Shrink Tube 10 x 45mm

The Heat Shrinkable Tube 10mm is a reliable and versatile solution for insulating and protecting wires and components. Made from durable polyolefin, it provides excellent electrical insulation and mechanical protection. When heated, this tubing shrinks to form a tight and secure fit around materials.

 Key Features:

• Material: High-quality polyolefin for durability and flexibility.
• Shrink Ratio: Typically 2:1, meaning it shrinks to half its original diameter when heated.
• Diameter: 10mm before shrinking.
• Heat Resistance: Withstands temperatures ranging from -55°C to 125°C.
• Insulation: Excellent electrical insulation and mechanical protection.
• Chemical Resistance: Resistant to common chemicals, oils, and solvents.
• Colors: Available in various colors for easy identification and color-coding of wires.

Technical Specifications:

• Inner Diameter (before shrinking): 10mm
• Inner Diameter (after shrinking): 5mm (2:1 shrink ratio)
• Wall Thickness (after shrinking): 0.45mm to 0.75mm
• Operating Temperature Range: -55°C to 125°C
• Shrink Temperature: Starts at 70°C, fully shrinks at 125°C
• Material: Polyolefin

Applications:

• Electrical Insulation: Insulating and protecting wires and electrical connections.
• Strain Relief: Providing strain relief for soldered and crimped connections.
• Environmental Protection: Protecting components from moisture, dust, and chemicals.
• Cable Management: Bundling and organizing cables and wires.
• Repair: Repairing damaged insulation on wires and cables.

Usage:

1. Cut to Length: Cut the heat shrinkable tube to the desired length.
2. Slide Over Connection: Slide the tube over the wire or connection to be insulated.
3. Apply Heat: Use a heat gun or lighter to apply heat evenly to the tube, starting from one end and working towards the other.
4. Shrink and Secure: The tube will shrink tightly around the wire or connection, providing a secure and insulated finish.

Caution:

• Ensure even heating to prevent overheating and damage to the tube.
• Use appropriate heat sources such as a heat gun for uniform shrinking.
• Avoid direct contact with flames to prevent burning.
