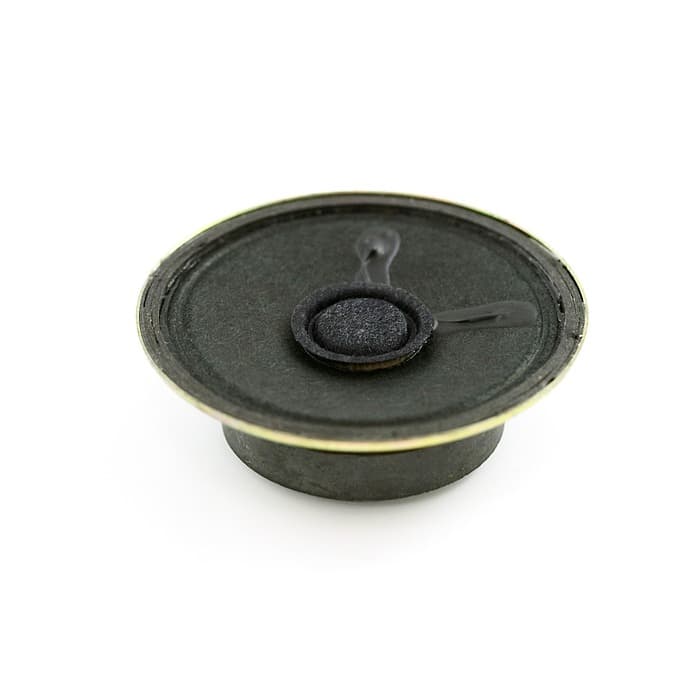

The Speaker 8 Ohm 2W is a compact and efficient audio transducer designed to deliver clear and powerful sound. Suitable for a variety of audio applications, including portable speakers, radios, intercoms, and DIY audio projects, this speaker ensures high-quality sound reproduction with minimal distortion. Key Features:
- Impedance: 8 ohms
- Power rating: 2W
- Compact and lightweight design
- High-quality sound reproduction
- Durable construction
- Easy to integrate into various audio projects
Technical Specifications:
- Rated Impedance: 8Ω ±15% at 1kHz/1V
- Rated Input Power: 2W
- Maximum Input Power: 3W
- Resonant Frequency (f0): 500Hz ±20% at 1V
- Frequency Range: 0Hz - 5kHz
- Sound Pressure Level (SPL): 85 ±3dB at 1kHz/1W/0.5m
- Total Harmonic Distortion (THD): ≤5% at 1kHz/1W
- Voice Coil Diameter: 13.3mm
- Magnet Material: Nd-Fe-B (32mm × 18mm × 6mm)
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -25°C to +70°C
- Weight: 50g ±10%
Applications:
- Portable speakers
- Radios
- Intercoms
- DIY audio projects
- Multimedia devices
- Educational kits
Usage:
- Mount the speaker in the desired enclosure or device.
- Connect the speaker terminals to the audio output of your amplifier or audio source.
- Ensure proper polarity when connecting the speaker wires.
- Test the speaker with a low-volume audio signal and gradually increase the volume to the desired level.
- Adjust the audio settings to achieve the best sound quality for your application.
Caution:
- Avoid exceeding the power rating to prevent damage to the speaker.
- Handle the speaker with care to avoid damage to the cone and other components.
- Follow the manufacturer’s guidelines for proper installation and usage.
