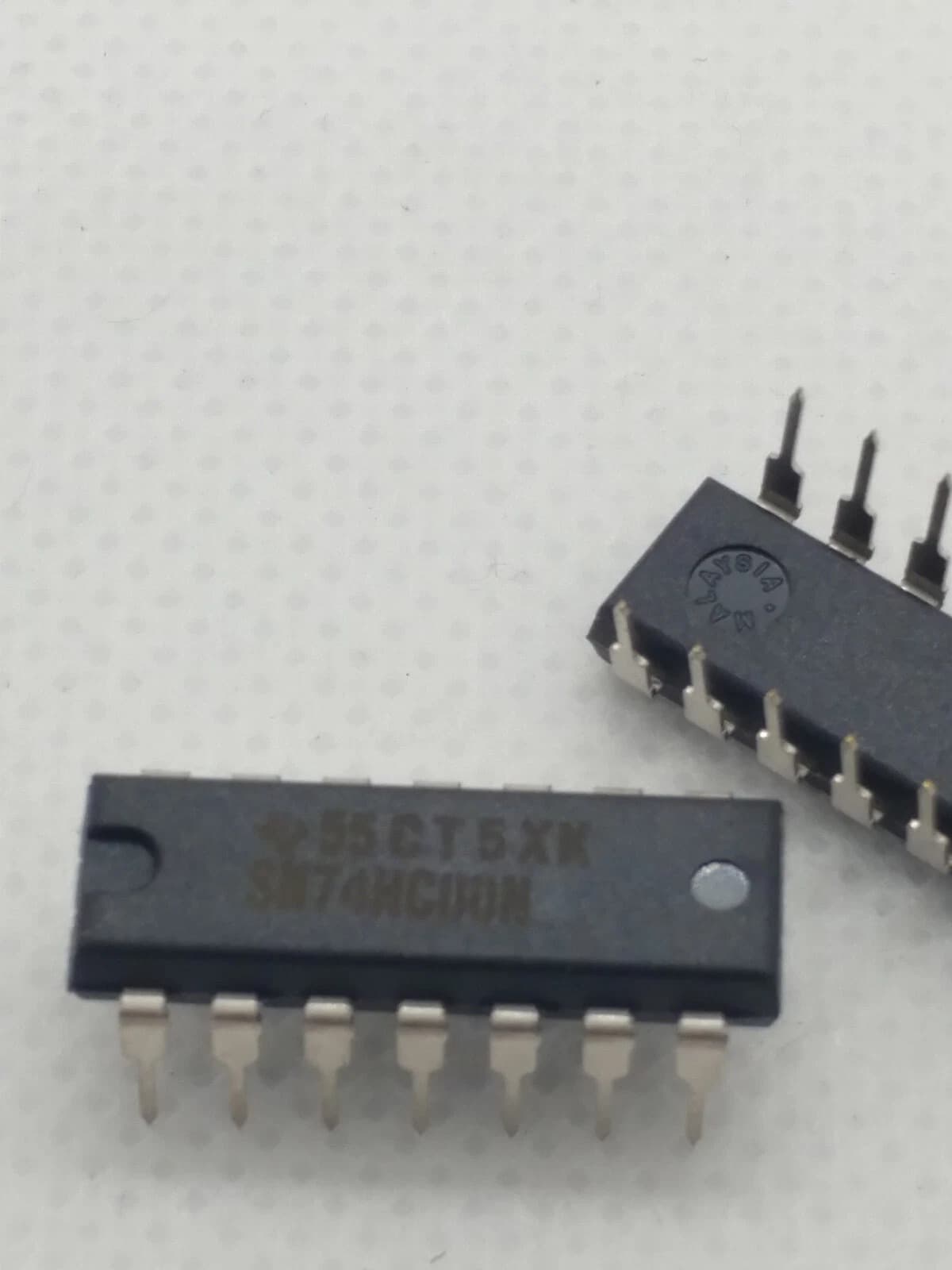

74HC00 IC

The 74HC00N is a high-speed CMOS quad 2-input NAND gate. It provides the function Y = A · B or Y = A AND B in positive logic. This device has the advantage of high speed, low power consumption, and high noise immunity, making it ideal for various digital logic applications. Each gate features standard TTL-compatible input levels, making it compatible with a wide range of logic devices. Key Features:

• Quad 2-input NAND gates
• High-speed CMOS technology
• Low power consumption
• High noise immunity
• TTL-compatible inputs
• Wide supply voltage range: 2V to 6V
• Standard 14-pin DIP, SOIC, and TSSOP packages

Technical Specifications:

• Supply Voltage (VCC): 2V to 6V
• Input Voltage Range: 0V to VCC
• High-Level Output Voltage (VOH): VCC - 0.1V (min at VCC = 4.5V)
• Low-Level Output Voltage (VOL): 0.1V (max at VCC = 4.5V)
• High-Level Input Voltage (VIH): 70% of VCC (min)
• Low-Level Input Voltage (VIL): 30% of VCC (max)
• Propagation Delay Time: 8 ns (typical at VCC = 5V)
• Operating Temperature Range: -40°C to +85°C
• Package: 14-pin DIP, SOIC, TSSOP

Applications:

• Digital logic circuits
• Data processing systems
• Control systems
• Combinational logic
