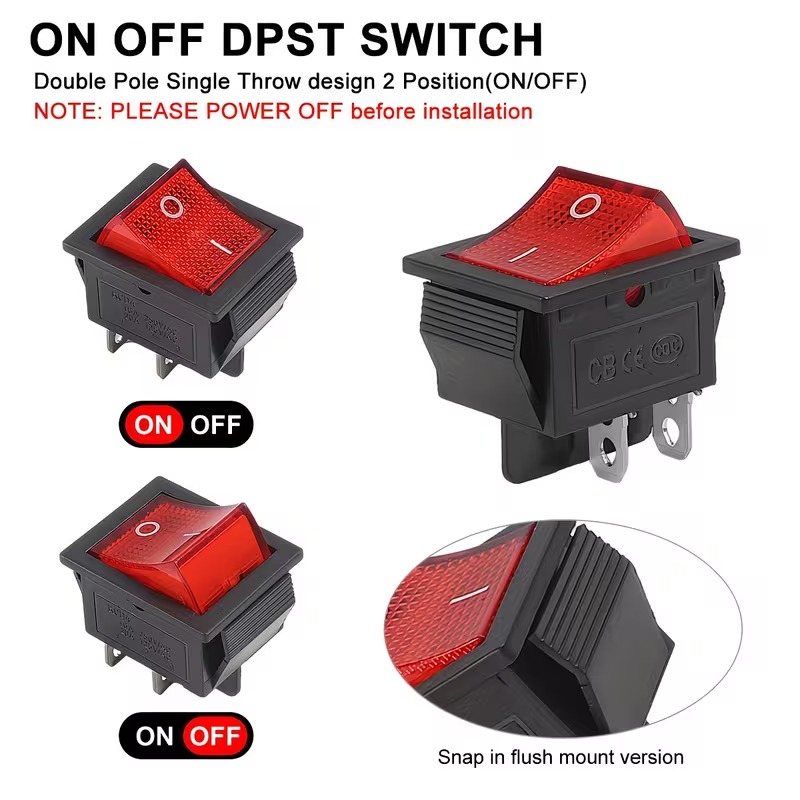

30A 250VAC/35A Power Rocker Switch

The Double Rocker Power Switch is a dual-position, dual-circuit switch designed for controlling electrical devices. It features a robust and reliable mechanism, making it suitable for a wide range of applications including home appliances, office equipment, and industrial machinery. The switch provides a simple on/off functionality, ensuring easy operation and installation. Key Features:

• Dual rocker design for two independent circuits
• Durable construction for long-term use
• Easy to install and operate
• Suitable for both AC and DC applications
• Clear on/off markings for user convenience
• Compact and ergonomic design

Technical Specifications:

• Type: Double Rocker Switch
• Current Rating: 15A
• Voltage Rating: 250V AC
• Contact Resistance: <50mΩ
• Insulation Resistance: >100MΩ
• Dielectric Strength: 1500V AC for 1 minute
• Operating Temperature Range: -25°C to +85°C
• Dimensions: 30mm x 25mm x 22mm

Applications:

• Home appliances
• Office equipment
• Industrial machinery
• Power tools
• Lighting fixtures
• Consumer electronics

Usage:

1. Ensure the power supply is disconnected before installing the switch.
2. Mount the switch in the desired location using the appropriate hardware.
3. Connect the electrical wires to the switch terminals, ensuring correct polarity.
4. Secure the switch and restore power to test its functionality.
5. Use the rocker switch to control the connected device with ease.

Caution:

• Always disconnect power before installation to prevent electrical shock.
• Verify the current and voltage ratings to ensure compatibility with your application.
• Follow the manufacturer’s guidelines for proper installation and operation
