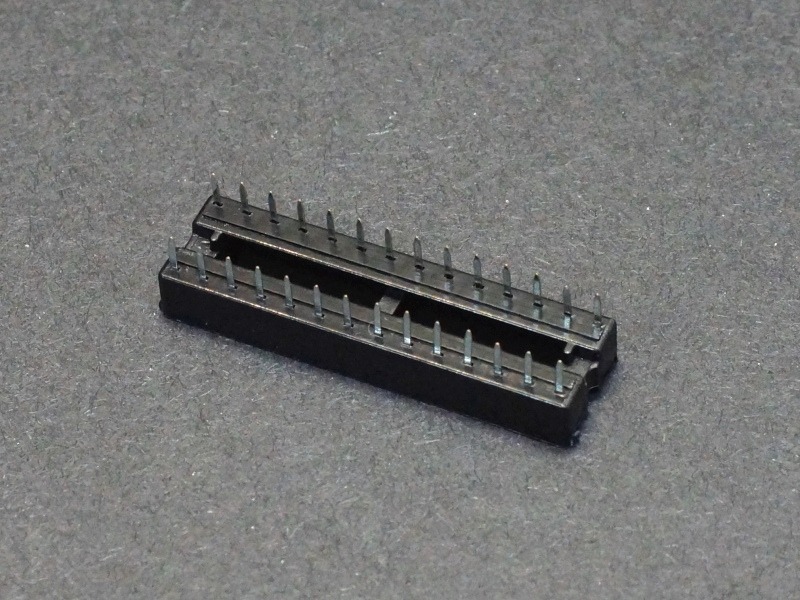

28 PIN IC SOCKET

The IC Socket with 28 pins is a precision-molded, dual-in-line (DIP) socket designed to house integrated circuits (ICs) with 28 pins. It provides a reliable and convenient way to mount ICs on a printed circuit board (PCB) without soldering the IC directly, allowing for easy replacement and reusability. The socket ensures a secure and stable connection while protecting the IC from potential damage during assembly or troubleshooting. Key Features:

• Accommodates ICs with 28 pins in a dual-in-line package (DIP)
• Facilitates easy insertion and removal of ICs
• Precision-molded body for reliable and stable connections
• Tin-plated or gold-plated contacts for excellent conductivity and corrosion resistance
• Low insertion force for easy handling
• Compatible with standard PCBs
• Available in various heights and profiles to suit different applications

Technical Specifications:

• Number of Pins: 28
• Pin Pitch: 2.54mm (0.1 inches)
• Contact Material: Tin-plated or gold-plated contacts
• Body Material: High-temperature thermoplastic
• Operating Temperature Range: -40°C to +105°C
• Dimensions: Varies by manufacturer (common size: 35mm x 10mm x 5mm)
• Mounting Type: Through-hole

Applications:

• Prototyping and development of electronic circuits
• Easy replacement and upgrading of ICs
• Protecting ICs from heat damage during soldering
• Ensuring reliable connections in electronic devices
• Use in educational and hobbyist projects

Usage:

1. Insert the IC socket into the PCB aligning the pins with the corresponding holes.
2. Solder the socket pins to the PCB, ensuring proper connection.
3. Insert the IC into the socket, ensuring correct orientation.
4. Press the IC gently but firmly to secure it in place.
